ABA Hughes BIM Library

Download production-ready Revit families designed and maintained by ABA Hughes. Every family is parameter-driven, fully documented, and tested across Revit 2023, 2024, and 2025.

19 BIM Products

11 Categories

3 Manufacturers

Browse by Category

Find BIM content organized by product type

Lighting Fixtures

2 products

Surface-mount, track, and recessed lighting families for commercial and residential applications. Parametric dimensions with IES photometric data references.

Ceiling Lighting

4 products

Flush-mount, semi-flush, and pendant ceiling light families for residential and hospitality projects. Available in multiple finish and size configurations.

Faucets

2 products

Kitchen and bathroom faucet families for architectural and interior design documentation. Includes single-handle, dual-handle, and deck-mount configurations.

Windows

1 products

Parametric window families for residential and commercial facade design. Supports thermal performance scheduling and glazing ratio calculations.

Vanity

1 products

Bathroom vanity cabinet and countertop families for residential and hospitality projects. Includes wall-hung and floor-standing configurations with integrated sink options.

Soap Dispenser

1 products

Wall-mounted and countertop soap dispenser accessories for commercial washrooms and residential bathrooms. Compliant with accessibility clearance modelling.

Kitchen

2 products

Kitchen unit, island, and range hood families for residential and commercial kitchen design. Includes parametric cabinetry and appliance integration references.

Appliances

1 products

Residential kitchen appliance families for design documentation and equipment schedules. Accurate footprints and clearance zones for code-compliant kitchen layouts.

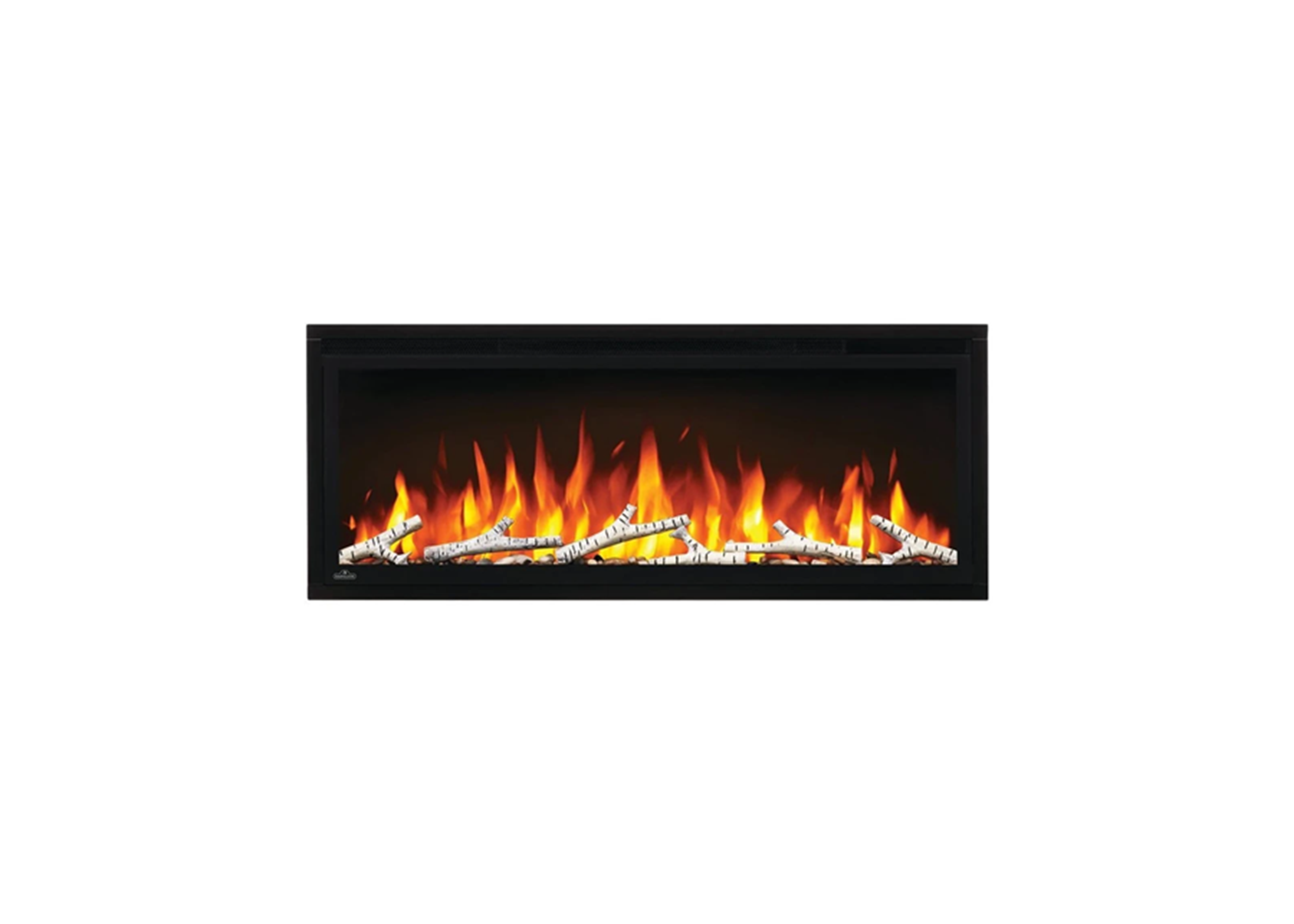

Fireplaces

1 products

Gas, wood-burning, and electric fireplace families for residential and hospitality interiors. Includes hearth, mantel, and flue/chase references for construction documentation.

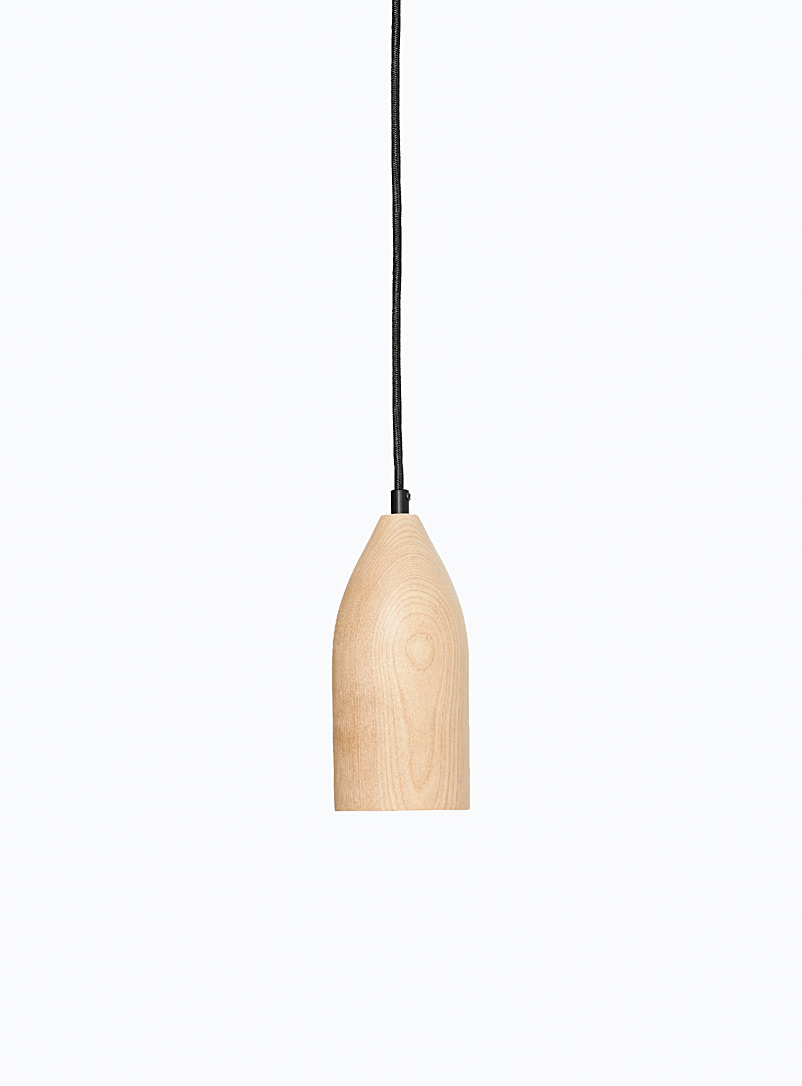

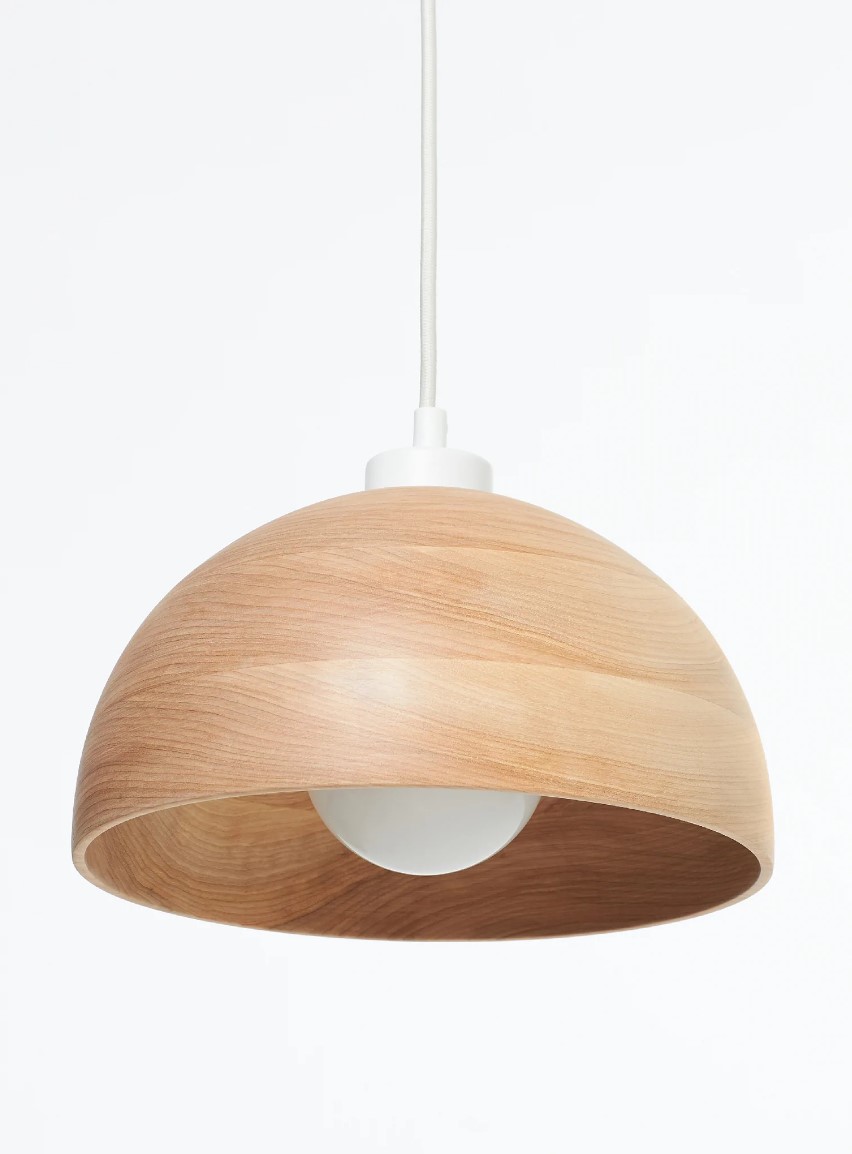

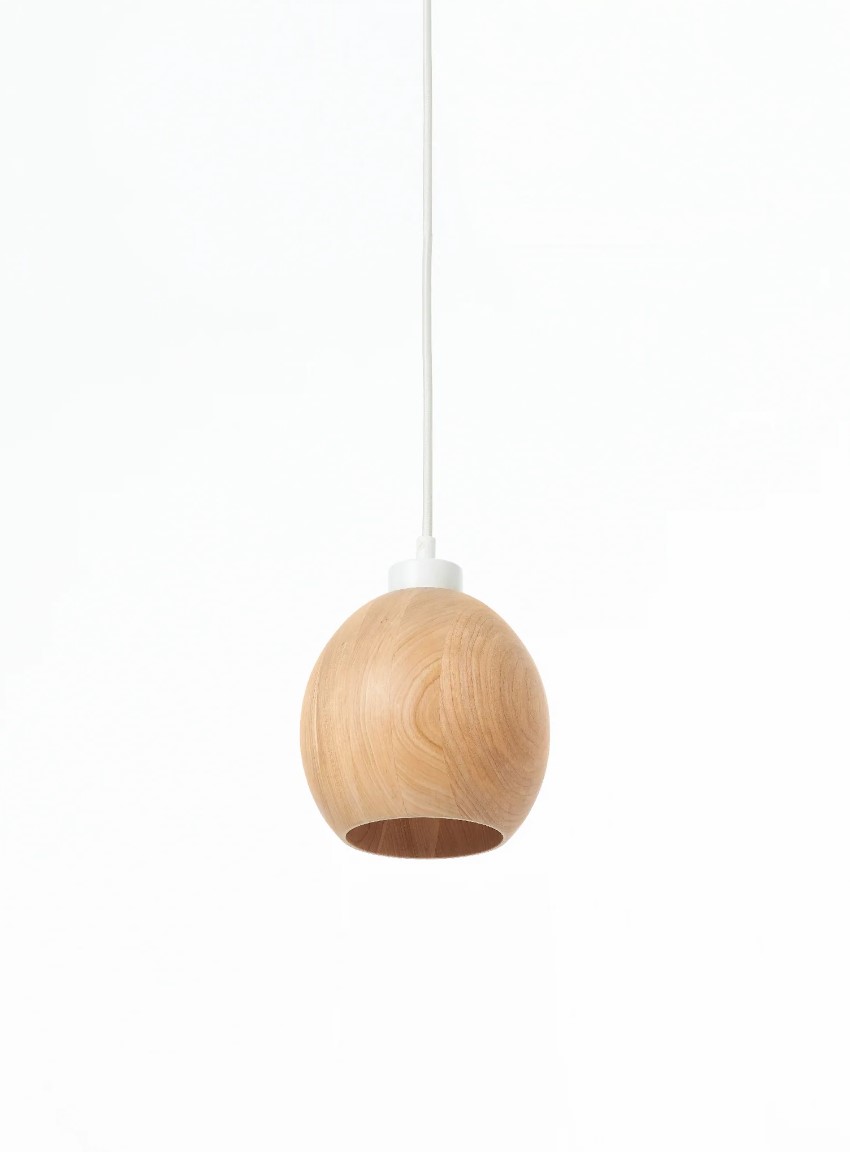

Bommel Series

3 products

The ABA Hughes Bommel Series — a signature collection of decorative accessory families for interior staging, hospitality, and high-end residential presentations.

Flooring

1 products

Tile, stone, and composite flooring pattern families for floor plan and interior design documentation. Includes grout joint and pattern rotation parameters.
